USB-4620/4622/4630 – Industrial USB Hubs by Advantech

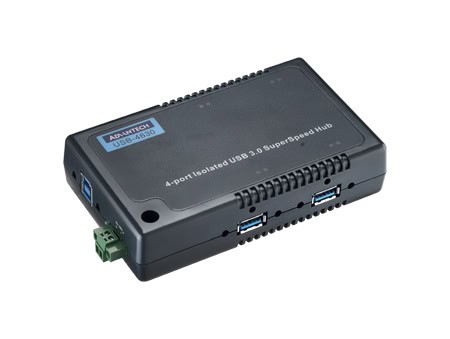

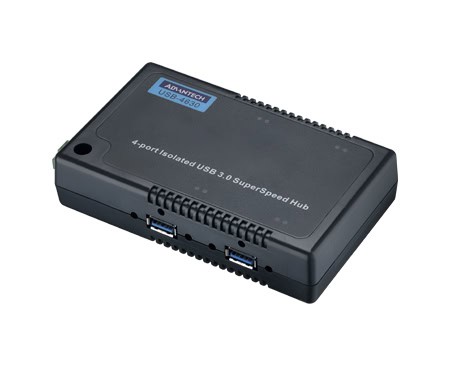

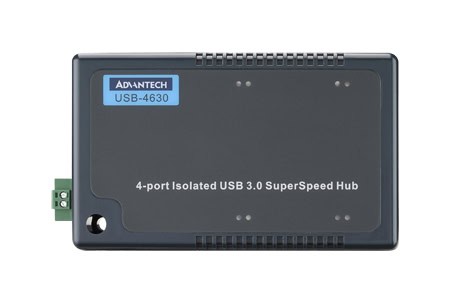

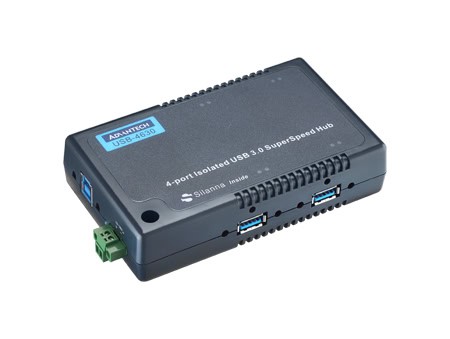

The USB-4620, USB-4622, and USB-4630 industrial USB hubs from Advantech deliver reliable USB connectivity for demanding industrial automation, manufacturing, and critical infrastructure applications. These rugged hubs are engineered to expand USB port availability while providing essential protection features for industrial environments. The USB-4620 is a 5-port isolated USB 2.0 full-speed hub offering 12 Mbps transfer rates with 3,000 VDC voltage isolation on each downstream port, protecting connected equipment from ground loops and voltage transients. The USB-4622 provides 5-port USB 2.0 high-speed connectivity at 480 Mbps with backward compatibility to USB 1.0, featuring LED indicators for port status monitoring. The USB-4630 represents the worlds first isolated USB 3.0 SuperSpeed hub, delivering up to 5 Gbps transfer speeds across 4 downstream ports with 2,500 VDC upstream isolation and comprehensive Level 4 ESD protection rated at 8kV contact and 15kV air discharge. All three models share a compact 132 x 80 x 32 mm form factor suitable for DIN rail mounting in control cabinets and industrial enclosures. They accept wide-range 10-30 VDC power input and operate reliably across 0 to 60 degrees Celsius with the USB-4630 extending to 70 degrees Celsius with external power. Each hub includes a lockable USB cable to prevent accidental disconnection in vibration-prone environments. These industrial USB hubs are ideal for factory automation systems, machine control applications, test and measurement equipment, and industrial data acquisition where reliable USB expansion with isolation protection is essential. Available from Recab, your Nordic partner for Advantech industrial connectivity solutions.
