SCM330-i3N305

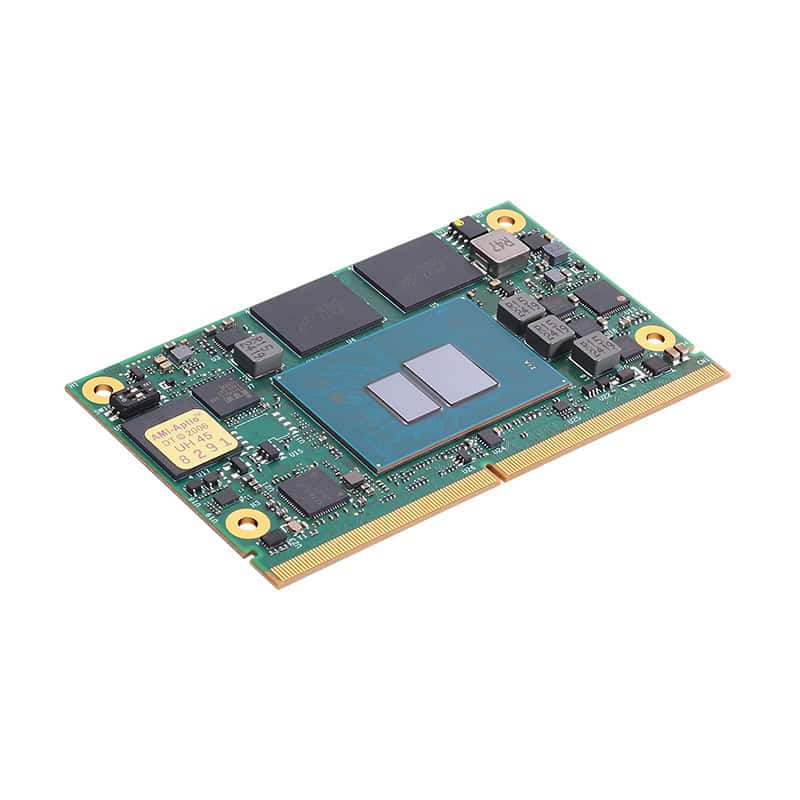

SCM330 – SMARC 2.1.1 Module with Intel x7000 Series Processors by Axiomtek

The Axiomtek SCM330 is a SMARC 2.1.1 compliant computer-on-module powered by Intel Core, Pentium, Celeron, or Atom processors from the x7000 series, offering a compact and power-efficient embedded platform for industrial, medical, and IoT applications. It supports up to 16GB LPDDR5-4800 with IBECC, up to 128GB eMMC5.1 storage, triple-display output, dual 2.5GbE LAN, and a wide industrial operating temperature from -40°C to +85°C. Available from Recab, your Nordic partner for Axiomtek embedded module solutions.
contct-now-icon (2) Get datasheet
Description
The Axiomtek SCM330 is a SMARC 2.1.1 compliant small form factor computer-on-module designed for embedded engineers building compact, power-efficient products across industrial automation, medical devices, IoT gateways, digital signage, and transportation systems. The module supports the Intel Alder Lake-N and Amston Lake processor family (x7000 series), spanning Intel Core i3-N305, Pentium, Celeron N97, and Atom x7835RE/x7211RE variants, all with TDPs ranging from 9 to 12W for thermally efficient deployments. System memory consists of LPDDR5-4800 in a memory-down configuration of up to 16GB with IBECC for enhanced data integrity, and eMMC5.1 storage of up to 128GB is soldered on board for solid-state reliability. Display output supports up to three simultaneous independent views via LVDS or optional eDP 1.4b, HDMI 2.0, and DisplayPort 1.4a, with resolutions up to 4096×2304 at 60Hz. Peripheral connectivity is provided by two USB 3.2 Gen 1 ports, six USB 2.0 ports, four UART serial interfaces, one SATA Gen3, and two CANbus ports, making the SCM330 well equipped for industrial sensor and device connectivity without requiring a large carrier board footprint. Dual Intel I226 2.5GbE Ethernet controllers with Wake-on-LAN and PXE Boot ROM support connectivity for networked industrial applications. The module supports fTPM for secure boot and data protection, a 65536-level watchdog timer, SMBus, two I2C buses, and 14 GPIO channels for flexible hardware monitoring and control integration. An industrial temperature grade covering -40°C to +85°C with a system thermal solution makes the SCM330 appropriate for automotive, transportation, and outdoor industrial deployments. Available from Recab, your Nordic partner for Axiomtek embedded module solutions.
Features
  • Intel Alder Lake-N and Amston Lake x7000 series processors with 9 to 12W TDP and up to 16GB LPDDR5-4800 IBECC memory deliver efficient, reliable computing for compact embedded designs.
  • SMARC 2.1.1 pinout compliance ensures broad carrier board compatibility and straightforward integration into existing or new embedded product hardware designs.
  • Triple independent display output via LVDS or eDP, HDMI 2.0, and DisplayPort 1.4a supports resolutions up to 4096x2304 at 60Hz for multi-screen HMI and signage applications.
  • Dual Intel I226 2.5GbE Ethernet controllers with Wake-on-LAN and PXE Boot ROM provide high-speed network connectivity suited to industrial and networked embedded deployments.
  • Two CANbus interfaces, four UART serial ports, one SATA Gen3, and 14 GPIO channels enable comprehensive industrial sensor, actuator, and device interfacing from a single module.
  • Industrial operating temperature from -40°C to +85°C with fTPM secure boot support and a 65536-level watchdog timer makes the SCM330 suitable for automotive and transportation applications.
Specifications
CPU Intel® Core™/Pentium®/Celeron®
Memory LPDDR5-4800, up to 16GB
Storage eMMC5.1, up to 128GB
Power 4.75 to 5.25V input
Temperature -40°C to +85°C
Dimensions 82 x 50 mm
Ethernet 2 x 10/100/1000/2500 Mbps
USB 2 x USB 3.2 Gen1, 6 x USB 2.0
Expansion 3 x PCIe x1, optional x4
Humidity 10% to 95% relative humidity
  • Industrial IoT gateway and edge computing with SMARC module carrier board designs
  • Medical device and diagnostic equipment requiring compact low-power processing
  • Transportation HMI and in-vehicle infotainment with triple-display output capability
  • Digital signage and kiosk systems requiring energy-efficient multi-screen operation
