KISS 1U V4 ADL

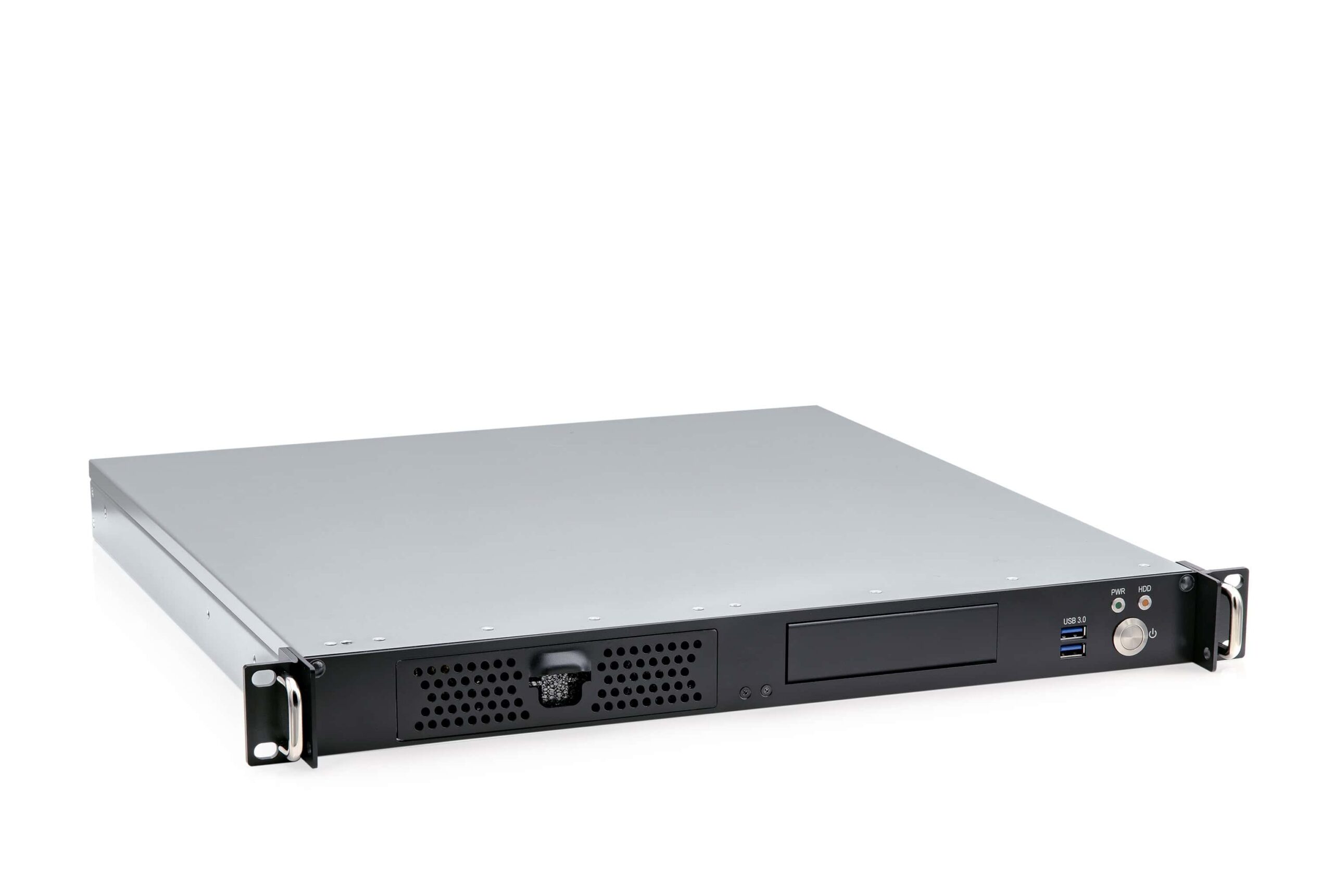

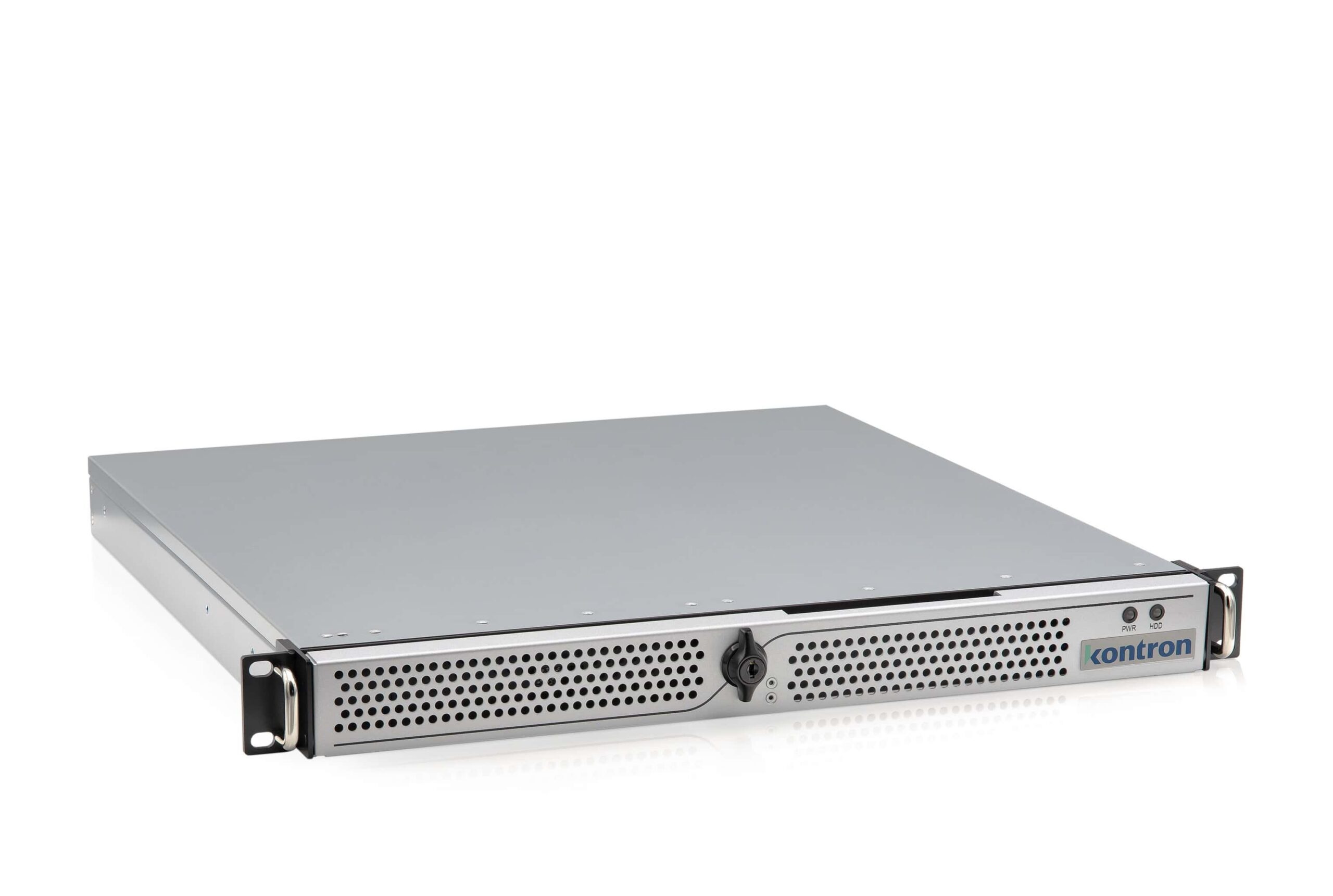

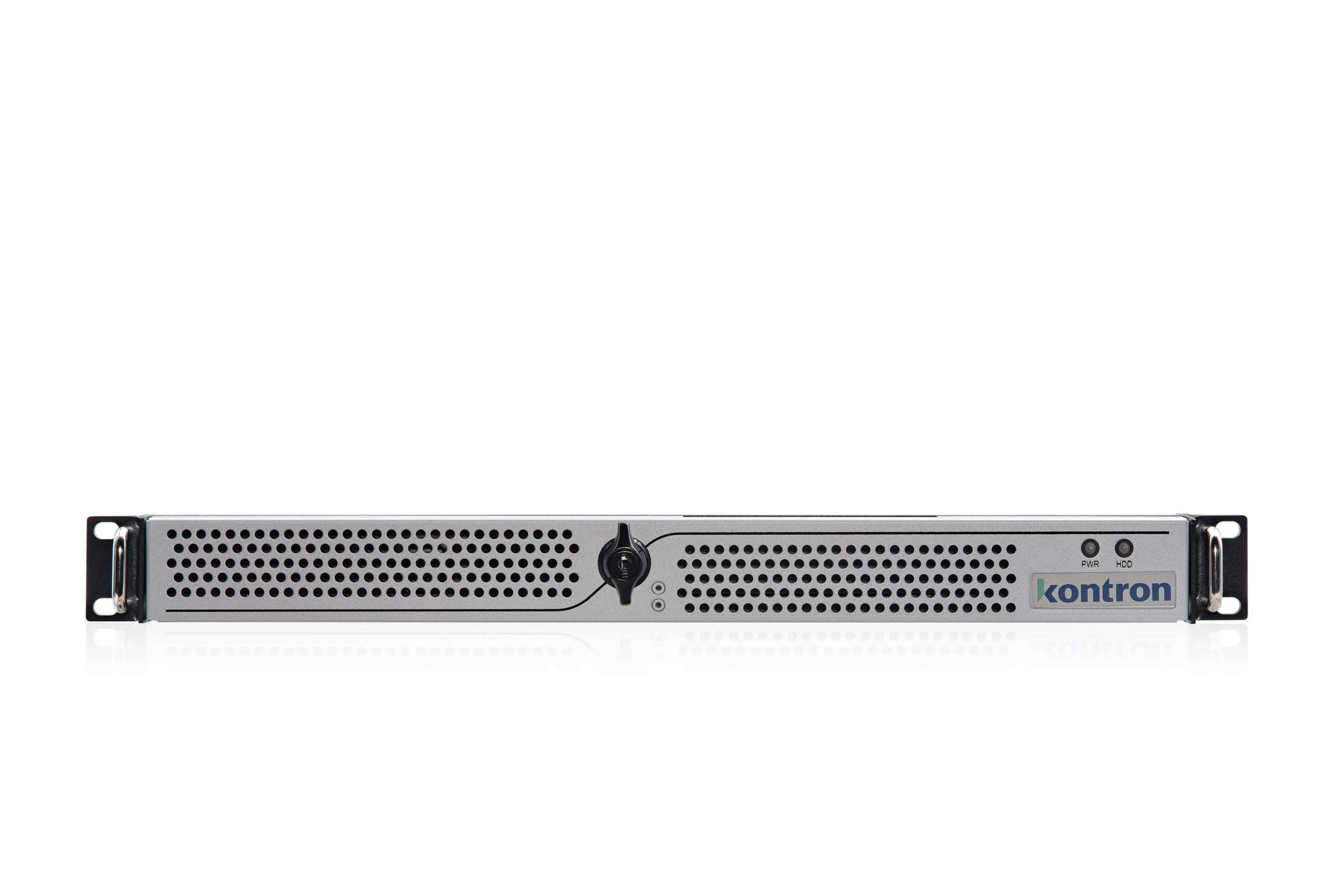

KISS 1U V4 ADL – 1U Industrial Rackmount Server by Kontron

The Kontron KISS 1U V4 ADL is a compact 1U 19-inch industrial rackmount server powered by 12th and 13th generation Intel Core i9/i7/i5/i3 processors, with DDR5 memory up to 64 GB across two DIMM slots. Triple-view display via four DisplayPort outputs, dual LAN including 2.5 GbE, flexible front-accessible removable drive bays, M.2 NVMe storage, PCIe x16 expansion, a 400 W 80+ power supply, and an operating altitude of 5000 m make it a robust fit for SCADA, MES, image processing, and AI workloads in challenging or noise-sensitive environments. Available from Recab, your Nordic partner for Kontron industrial server solutions.
contct-now-icon (2) Get datasheet
Description
The Kontron KISS 1U V4 ADL is a 1U 19-inch industrial rackmount server built for challenging environments including high-temperature conditions, mechanical stress, and noise-sensitive installations. Powered by 12th and 13th generation Intel Core i9, i7, i5, or i3 series processors and equipped with two DDR5 DIMM slots supporting up to 64 GB of memory, it provides substantial compute headroom for image processing, SCADA/MES, AI inference, and machine learning workloads. The rear I/O panel provides four DisplayPort outputs for multi-monitor configurations, dual LAN with 1 GbE and 2.5 GbE, six USB ports including USB 3.2 Gen2 Type-C with locking option, one RS-232, and audio. Front I/O provides two USB 3.2 ports for convenient operator access. Drive configuration is highly flexible, with front-accessible removable bays accommodating 3.5-inch and 2.5-inch SATA drives in single or RAID configurations including the DA225 and DA225R dual 2.5-inch removable options, alongside internal SATA capacity, one M.2 Key-M NVMe slot, and one M.2 Key-E for WLAN/Bluetooth with CNVi support. One PCIe x16 full height full length expansion slot accommodates optional NVIDIA Quadro T1000 graphics or 10 GbE NICs. A 400 W 80+ power supply, operating temperature of 0 to 50 degrees Celsius, 5000 m altitude rating, CE, FCC, NRTL, and CB IEC 62368-1 certification, and MTBF exceeding 50,000 hours confirm the KISS 1U V4 ADL as a long-term reliable industrial server platform. Available from Recab, your Nordic partner for Kontron industrial server solutions.
Features
  • 12th and 13th gen Intel Core i9/i7/i5/i3 processors with DDR5 memory up to 64 GB deliver strong compute for industrial AI and imaging.
  • Four rear DisplayPort outputs enable multi-monitor configurations for SCADA, MES, and operator workstation deployments.
  • Front-accessible removable 3.5-inch and 2.5-inch drive bays including RAID options simplify field maintenance in deployed rack systems.
  • One PCIe x16 full height full length slot supports optional NVIDIA graphics cards and 10 GbE network expansion cards.
  • 5000 m operating altitude rating and 0 to 50 degree Celsius operation suit deployment in diverse challenging industrial environments.
  • CE, FCC, NRTL, and CB IEC 62368-1 certification with MTBF exceeding 50,000 hours confirm long-term industrial reliability.
Specifications
System KISS 1U V4 ADL
Dimensions 44 mm x 482 mm x 430 mm
Weight Approx. 6 kg
Processor 12th/13th Gen Intel® Core™
RAM Up to 64 GByte DDR5

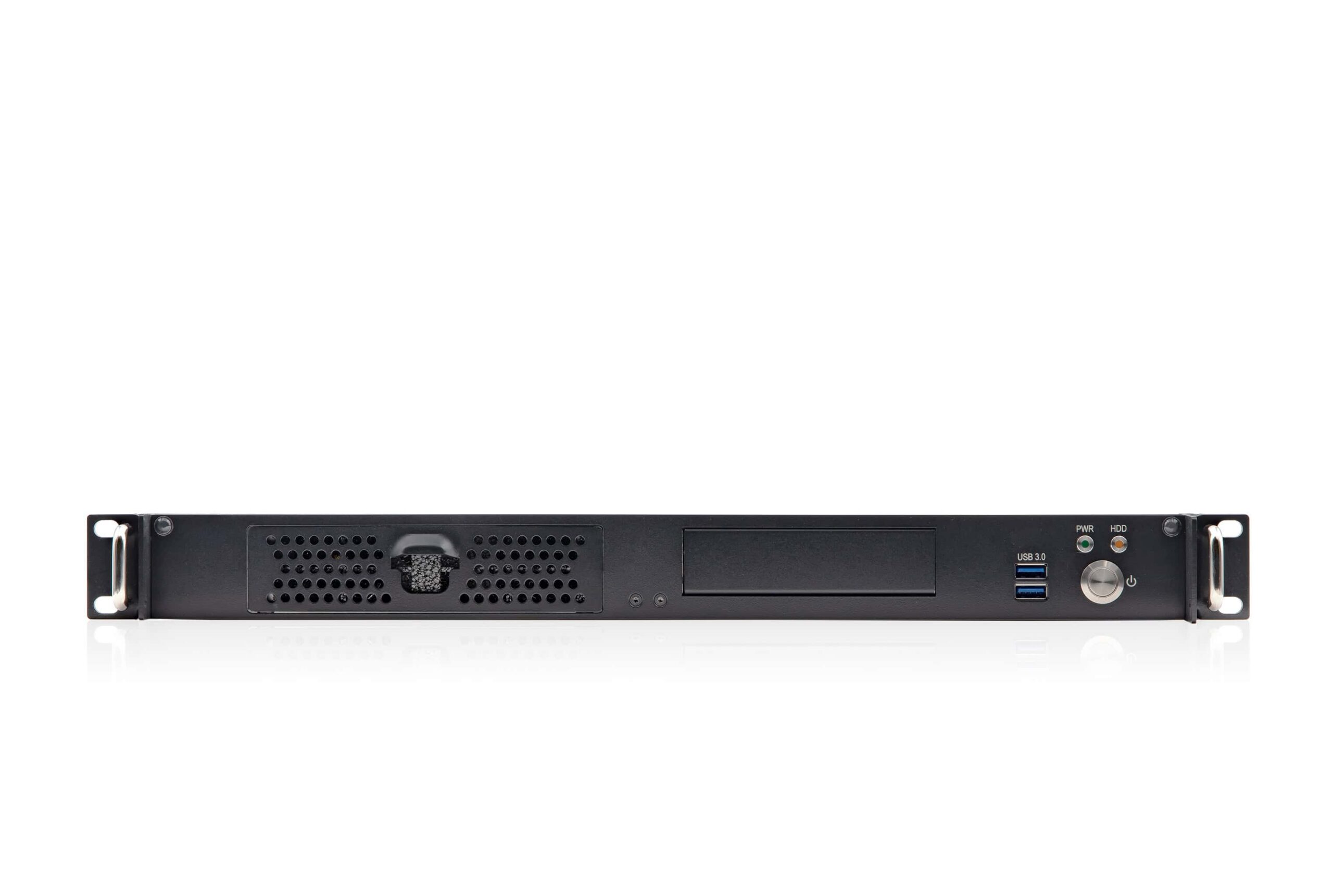

Front I/Os 2x USB 3.2
Power Supply 100-240 VAC 400 W
Operating Temp 0 °C to +50 °C
MTBF > 50.000 h
Altimeter 5000 m operating
  • SCADA and MES industrial rackmount server in factory automation control rooms
  • High-end image processing and AI inference in 1U rack-mounted industrial edge deployments
  • Noise-sensitive laboratory and test environment computing requiring low-acoustic 1U server hardware
  • Multi-display operator workstation server with removable front-access drive bays for field maintenance
