AL Pi-Tron CM3+

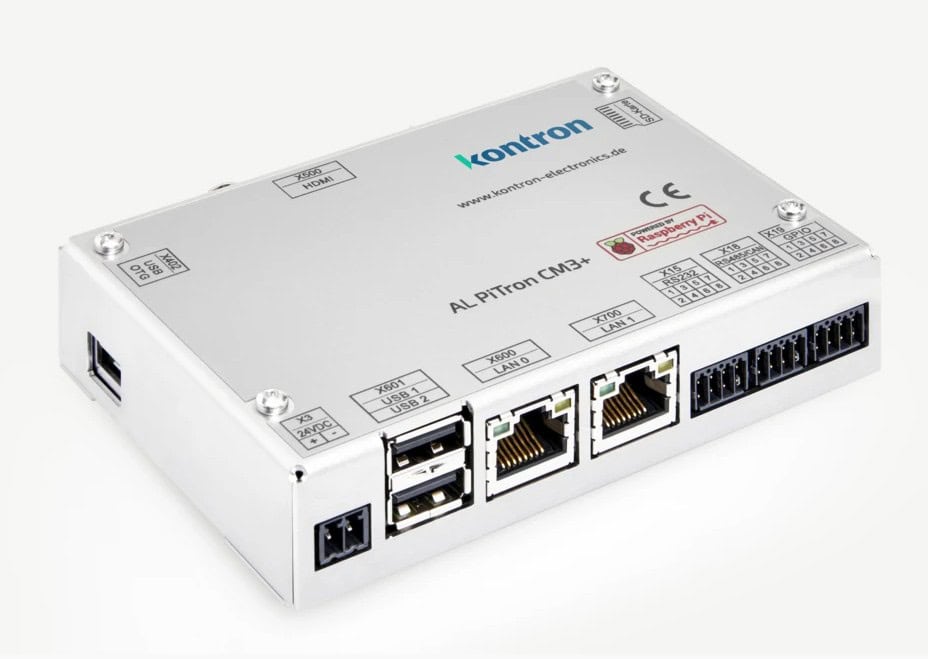

AL Pi-Tron CM3+ – Raspberry Pi Compute Module Industrial DIN Rail Computer by Kontron

The Kontron AL Pi-Tron CM3+ is a compact industrial DIN rail computer built around the Raspberry Pi Compute Module 3+ with a Broadcom BCM2837B0 quad-core Cortex-A53 processor at 1.2GHz, running Raspbian Linux in a robust stainless steel housing. With dual 10/100 Ethernet, RS-232, RS-485, CAN 2.0, four 24V digital I/O channels, and 24V DC industrial power input, it brings the Raspberry Pi ecosystem into control cabinet and IoT gateway applications. Available from Recab, your Nordic partner for Kontron Automation-Line computing solutions.
contct-now-icon (2) Get datasheet
Description
The Kontron AL Pi-Tron CM3+ is an industrial DIN rail computer from the Kontron Automation-Line series, built around the Raspberry Pi Compute Module 3+ to deliver the extensive software ecosystem, community-driven tooling, and cost-effectiveness of the Raspberry Pi platform in a robust stainless steel chassis engineered for control cabinet integration. Developed by Kontron as an official Raspberry Pi Design Partner, the AL Pi-Tron CM3+ houses the Broadcom BCM2837B0 quad-core Cortex-A53 processor at 1.2GHz with 1GB LPDDR2 RAM and eMMC storage options of 8GB or 32GB, alongside a microSD slot on the Lite variant for the operating system. Communication interfaces include two 10/100 Mbit/s Ethernet ports, two USB 2.0 Host ports, one USB 2.0 OTG for eMMC programming, RS-232, RS-485, CAN 2.0, and four 24V digital I/O channels at up to 800mA, providing a comprehensive set of industrial connectivity options for automation controllers, IoT gateways, and M2M communication devices. The unit runs Raspbian Linux and benefits from the large Raspberry Pi developer community providing extensive software examples, fully translated packages, and active support resources that significantly reduce development time for industrial applications. Additional I/O can be added via Kontron multifunctional I/O modules connected via the CAN interface, with up to 16 modules supported for digital, analogue, and temperature I/O expansion. The stainless steel IP20 housing measures 111 x 25 x 76mm and mounts on standard 35mm DIN rail per EN 60715, operating from 0°C to 55°C on 24V DC at a maximum of 9.6W. FCC, UL61010, and CB report certified. Available from Recab, your Nordic partner for Kontron Automation-Line Raspberry Pi industrial computing solutions.
Features
  • Raspberry Pi Compute Module 3+ with Broadcom BCM2837B0 quad-core Cortex-A53 at 1.2GHz in official Kontron industrial DIN rail housing
  • Dual 10/100 Ethernet, RS-232, RS-485 and CAN 2.0 for comprehensive industrial device and network connectivity
  • Four 24V digital I/O channels at up to 800mA for direct integration with industrial sensors and actuators
  • Expandable via Kontron multifunctional I/O modules via CAN bus for additional digital, analogue and temperature I/O
  • Raspbian Linux with large Raspberry Pi developer community providing extensive software packages and examples
  • Compact IP20 stainless steel 35mm DIN rail housing at 111 x 25 x 76mm operating from 0 degrees C to 55 degrees C on 24V DC
Specifications
CPU Broadcom BCM2837BO 4x Arm® Cortex®-A53 @1.2 GHz
MEMORY LPDDR2-RAM-1 GByte, EMMC*-8 GByte/32 GByte, SD CARD CM3+ Lite, 1x microSD-Slot for operating system
ETHERNET 2x 10/100 Mbit/s
USB 2x 2.0 Host,
SERIA 1x RS232, 1x RS485x RS232, 1x RS485
CAN 1x2,0
DIO 4x DIO (24 V/up to 800 mA)
  • Industrial IoT gateways and M2M communication leveraging the Raspberry Pi CM3+ software ecosystem
  • Edge computing and automation control in DIN rail control cabinet environments requiring cost-effective Linux computing
  • Communication and data logging applications requiring compact low-power industrial computing
  • Mechanical engineering and machine building requiring proven Raspberry Pi based industrial integration
