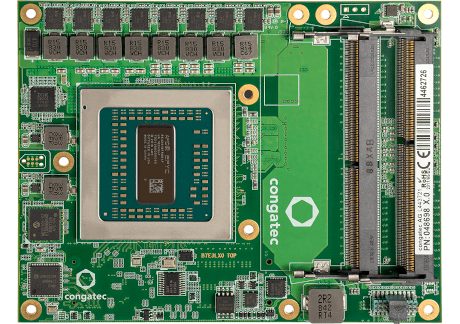

COM Express Type 7 from Congatech – Server Class module based on AMD EPYC™ 3000 processor series
The conga-B7E3 modulesuse the Type 7 pinout definition and comply with COM Express 3.0 specification. They are equipped with two high performance connectors that ensure stable data throughput and support high bandwidth networking.

Integrates all the core components of a common PC The COM (computer on module) integrates all the core components of a common PC and is mounted onto an application specific carrier board. COM modules are legacy-free design (no Super I/O, PS/2 keyboard and mouse) and provide most of the functional requirements for any embedded PC application.These functions include, but are not limited to a rich complement of contemporary high bandwidth serial interfaces such as:

• PCI Express
• Serial ATA
• USB 3.0/2.0
• 10 Gigabit Ethernet

Allows the designer to create a dense and optimized package Carrier board designers can use as little or as many of the I/O interfaces as deemed necessary. The carrier board can therefore provide all the interface connectors required to attach the system to the application specific peripherals. This versatility allows the designer to create a dense and optimized package, which results in a more reliable product while simplifying system integration.

Modules are scalable Most importantly, COM Express™ modules are scalable, which means once an application has been created there is the ability to diversify the product range through the use of different performance class or form factor size modules. Simply unplug one module and replace it with another; no redesign is necessary.

Feature:
