RDD20-1400A-EUUS999HHE3SXX.X.XX

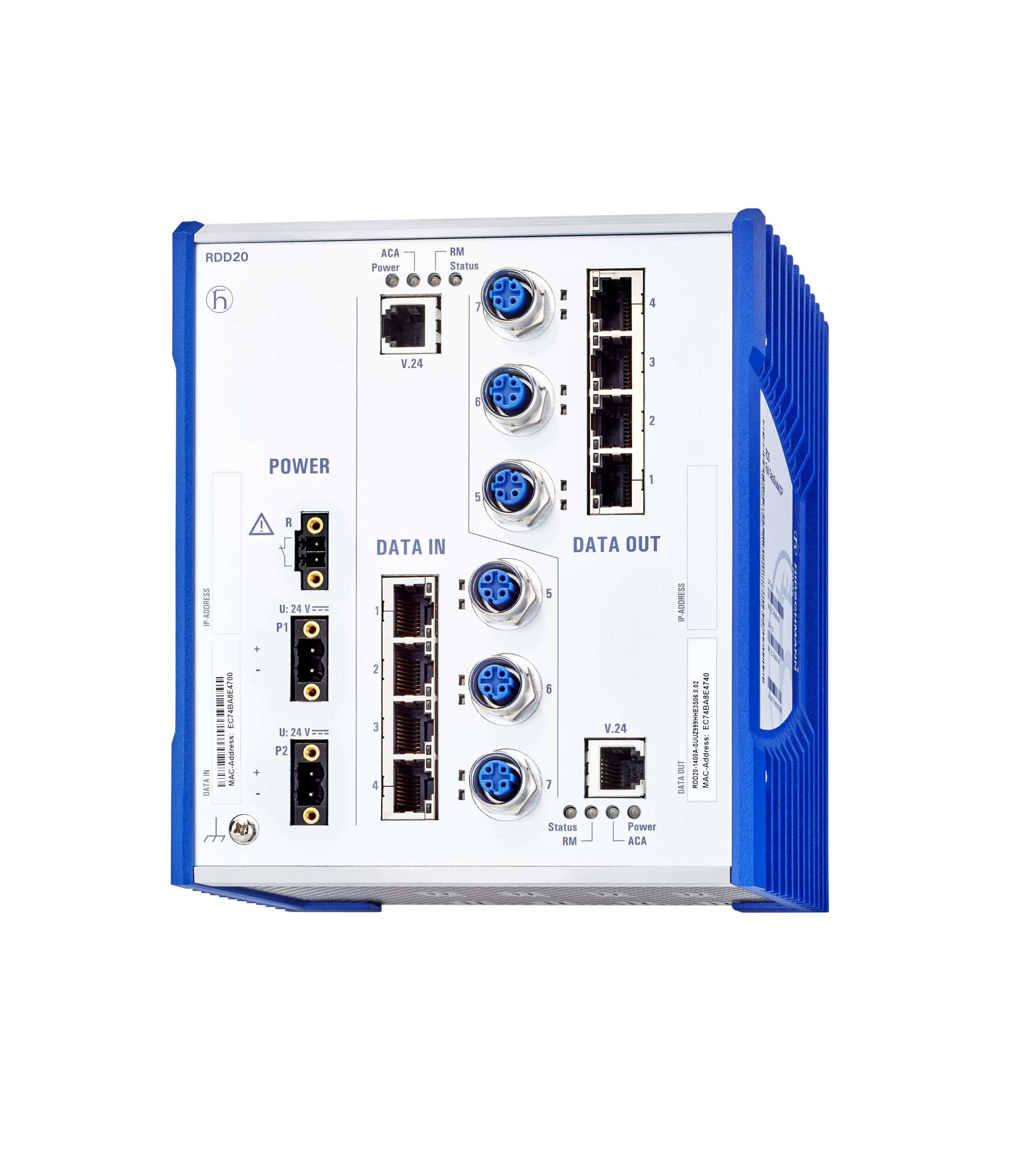

Rail Data Diode LV Train

The Rail Data Diode LV Train provides a secure unidirectional data connection for train systems with a 24 V operating voltage. It incorporates advanced routing and security features tailored for railway applications.
contct-now-icon (2) Get datasheet
Description
The Rail Data Diode LV Train is designed to ensure secure data transmission in train systems, operating at 24 V. It features dual independent data routers, supporting up to 100 Mbit/s connectivity. Enhanced with VLAN support and redundancy mechanisms, it’s reliable in critical environments. Suitable for railway applications, it operates within a wide temperature range and meets stringent security requirements.
Features
  • Unidirectional Data Flow
  • Multiple Port Types
  • Integrated Security Features
  • Wide Operating Temperature Range
  • Robust Redundancy Protocols
  • Automatic Configuration Options
Specifications
Operating Voltage 24 VDC (16.8 .. 32 VDC)
Power Consumption 23 W
Ports 14 ports total
Weight 2200 g
Dimensions 146 mm x 164 mm x 120 mm
Operating Temperature -40 to +70 °C
Humidity 5-95 % non-condensing
Protection Class IP20
Vibration 5 Hz to 150 Hz
Shock 30 m/s²
  • Railway Data Transmission
  • Unidirectional Data Routing
  • Network Redundancy Solutions
  • VLAN Management
  • Security for Critical Systems
  • Operating in Harsh Environments

Get datasheet
